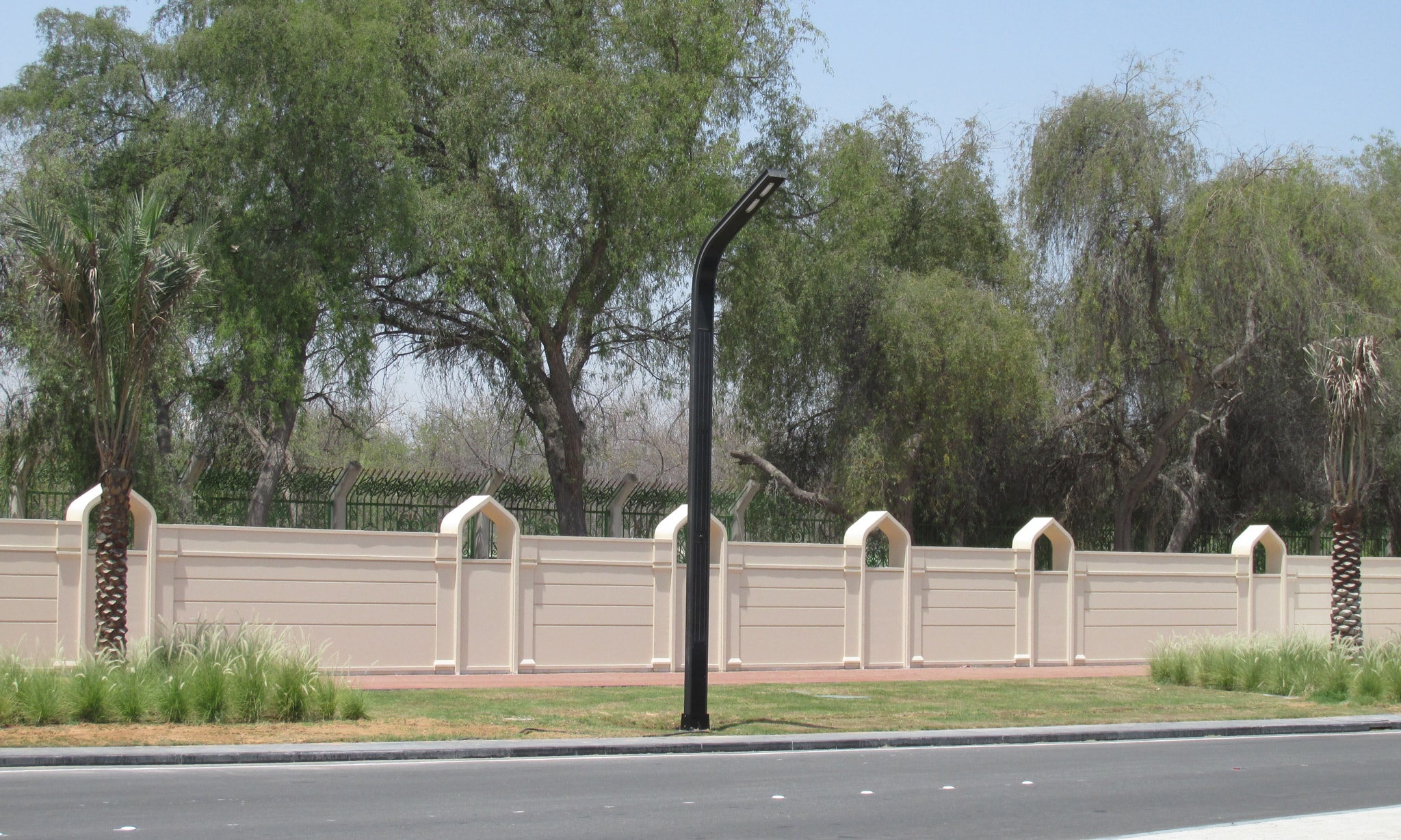

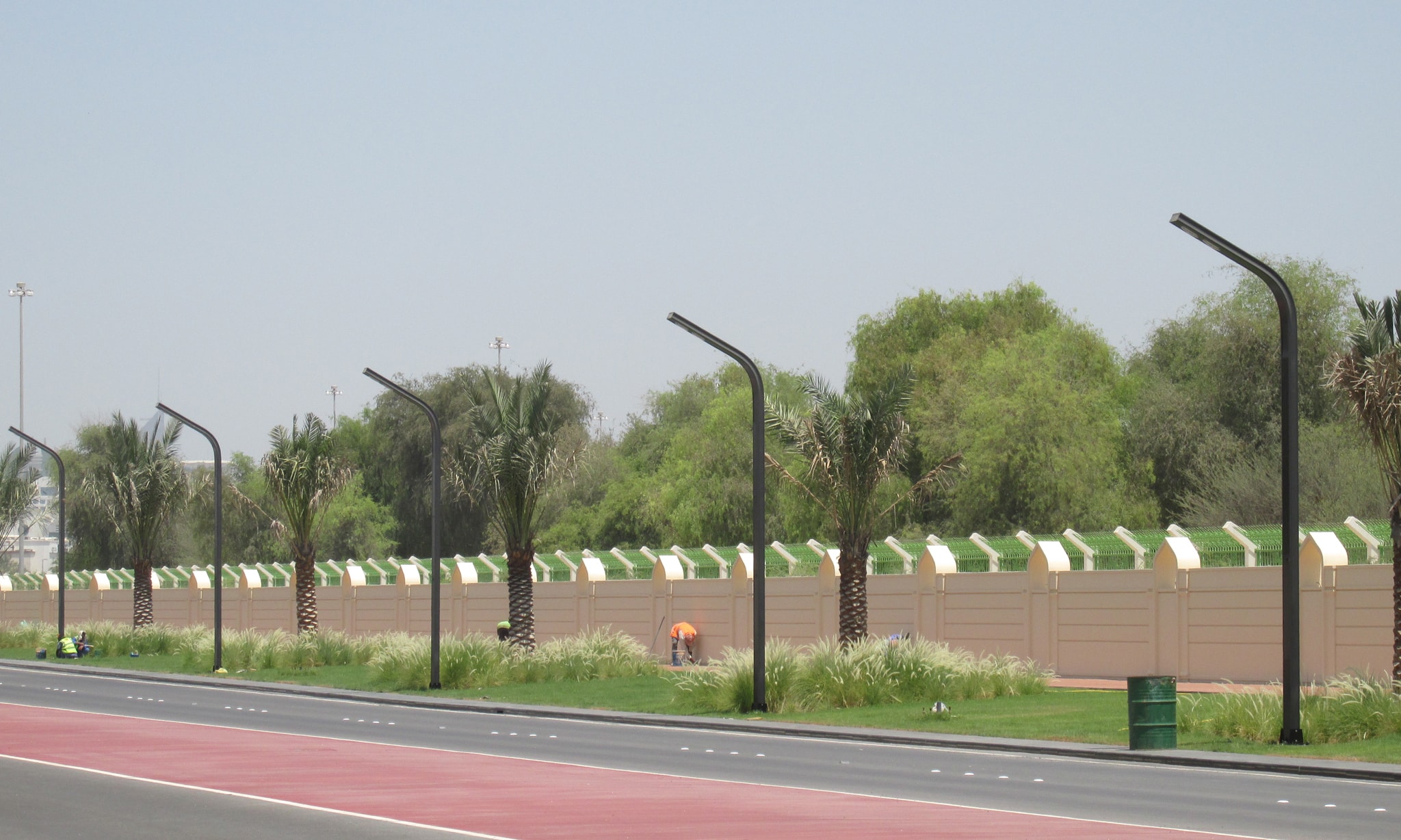

CURVE SOLAR POLE LIGHT 7 M

Model No : Curve Solar Pole Light 7 M

Solar innovation supported by a streamlined design

The Curve solution in the Photolight

The Curve solution in the Photolight® solar range delivers smart, autonomous lighting for urban, residential, tertiary and private areas. Designed for urban or residential environments and suitable for corporate or private events, the Photolight solar lights are totally autonomous and adapted to all types of locations. They offer intelligent lighting through their light intensity programming and time settings. Equipped with a light & motion detector, programmable via WiFi from a smartphone or computer.

7 solar monocrystalline silicon cell panels

2 IP66 LED modules with lenses and optical diffuser in polycarbonate with UV protection

Luminous flux of up to 4,200 lumen

Colour temperature 4000K

It can be configured with the 2 LED modules street-side lighting,

or 1 LED module street-side and 1 LED module LED pavement-side (height 4.40 m).

Optional: CCTV camera, USB socket.

Height 7 metres

Motion sensor: detection up to 7m.

enquire CATALOG

CURVE SOLAR POLE LIGHT 7 M

Model No : Curve Solar Pole Light 7 M

The Curve solution in the Photolight

Height : 7 m
7 solar monocrystalline silicon cell panels
2 IP66 LED modules

7 solar monocrystalline silicon cell panels

2 IP66 LED modules with lenses and optical diffuser in polycarbonate with UV protection

Luminous flux of up to 4,200 lumen

Colour temperature 4000K

It can be configured with the 2 LED modules street-side lighting,

or 1 LED module street-side and 1 LED module LED pavement-side (height 4.40 m).

Optional: CCTV camera, USB socket.

Height 7 metres

Motion sensor: detection up to 7m.

enquire CATALOG

High quality pole

Pole in anodized aluminum

LEDs

Ultra performant IP66 LEDs with a >90% luminous efficiency

Solar panels

High efficiency solar panels

Easy programming

Easy programming through WiFi

No need of electricity

Thanks to the sun, PhotoLight® does not need electricity to operate except Hybrid range.

Installation is made easy

No wiring, no trenching, no control cabinets except Hybrid range.

No CO2 emissions

No CO2 emissions thanks to an eco-responsible solar designex except Hytbrid range.

Smart Lum

Program flexibility for the ‘right lighting’

Low maintenance costs

Stand alone, LED durability

Design and aesthetic

Vertical voltaic panels resistant to residual dirt deposits

Technical Specifications

OVERALL INFORMATION

Dimensions	H 7000 x W 250 x D 1530
Luminaire weight without batteries	150 kg
Material and paint treatment	Aluminum pole and arm - Powder paint (seafront and seaside on request)
Max Power	38W for 1 module
Nominal power	20W for 1 module
Indication for the implementation of a surge arrester	Category Electronic Equipment > IV
County of Origin	Made in France

LED

Lifetime	L80 > 100 000 hours @700mA@Tj=85°C
Manufacturer	LUMILEDS
Lumen/Watt efficiency	152 lm/W max. @350mA @Tj = 85°C - Bin V @4000K
Color T°:	3000K and 4000K - CRI 70

LIGHTING

Outgoing nominal flow	2173 lm@4000K for 1 module
Optical performance	89%
Luminaire nominal efficiency	109 lm/W @4000K
Optics	ASYM 2.2 pathway type as standard

BATTERY

Battery weight	11 Kg
Technology	NiMH
Total power	528 Wh
Voltage / Capacity	24V/22Ah
Nominal lifetime	7 years

PHOTOVOLTAIC PANNELS

Number of panels - Technology	7 - Monocrystalline
Unit power	35 W
Voltage	13,6V
IK panels	IK08

PROGRAMMING

Smart Lum function	Cycles (lighting dimming according to a predefined schedule)

ELECTRONIC CARD

Battery Management (BMS)	Yes
Solar Charger	Yes

COMPLIANCE

Standards and certifications	EN 60598-1 / 2-3 Lighting: General requirements and tests - Public lighting luminaires EN 62722-2-1

OPERATING TEMPERATURE

Operating temperature range	-25°C to 80°C

INSTALLATION

Installation mean	Sealing rods provided, specific according to the wind area. See installation instructions
Battery location	Inside the pole as standard, buried according to the temperature of use
